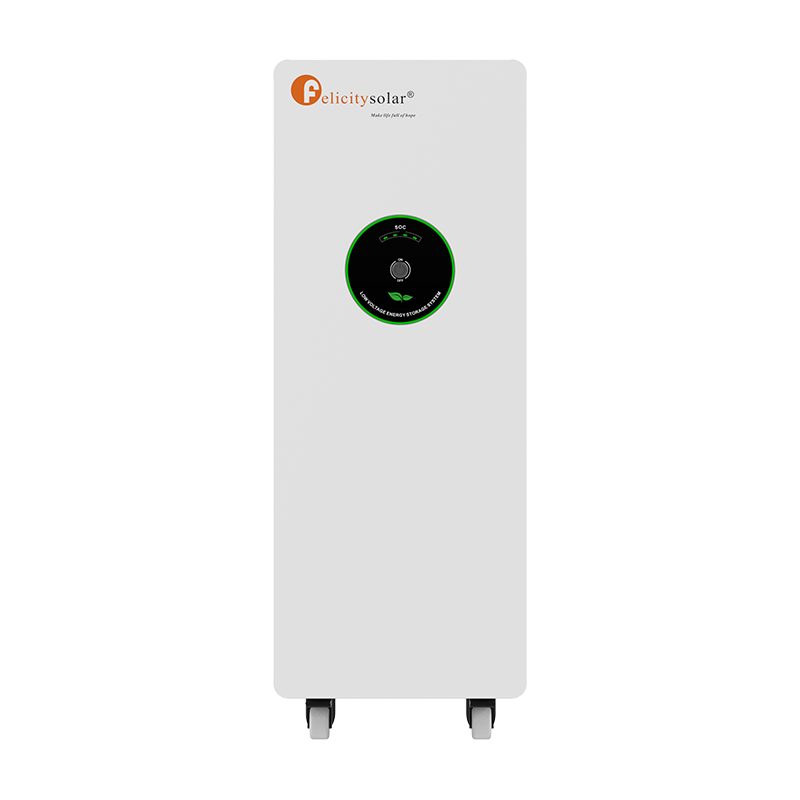

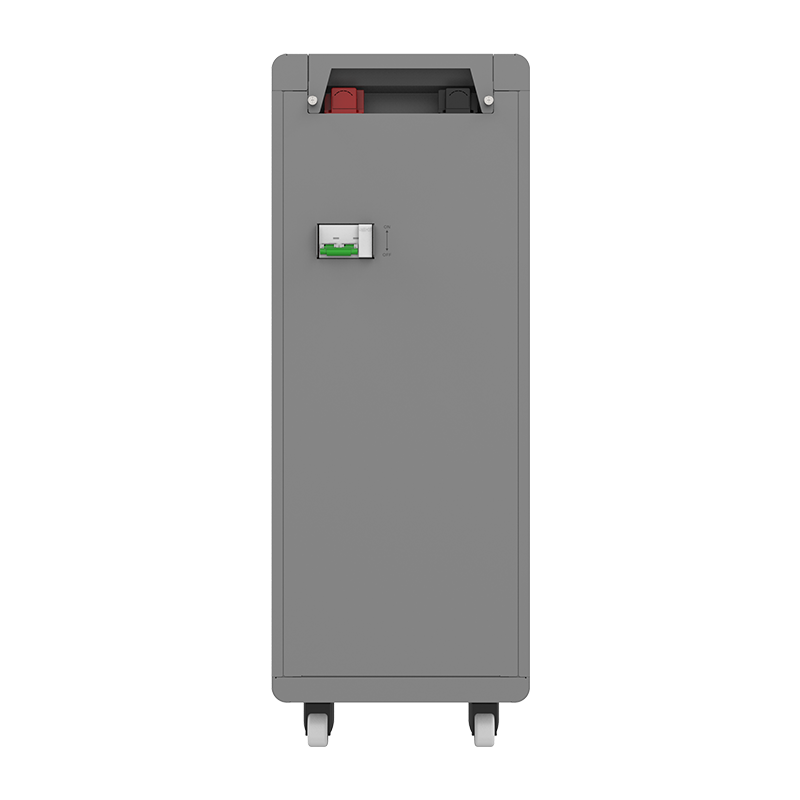

Felicity LPBF 48300-II – Technical Specifications

🔋 Battery Overview

• Model: LPBF 48300-II

• Battery Type: Lithium Iron Phosphate (LiFePO₄)

• Nominal Energy: 15 kWh

• Nominal Voltage: 51.2 V

• Capacity: 300 Ah

🔌 Electrical Specifications

• Voltage Range: 48 V – 57.6 V

• Nominal Voltage: 51.2 V

• Rated Capacity: 300 Ah

• Usable Capacity (DoD ≥ 95%): ~14.25 kWh

• Recommended Charge Current: ≤ 120 A

• Recommended Discharge Current: ≤ 120 A

• Max Charge/Discharge Current (15 seconds): 200 A

• Cycle Life: ≥ 6,000 cycles @ 25°C (80% DoD)

• Battery Chemistry: LiFePO₄

• Scalability: Up to 6 units in parallel (≈ 90 kWh system)

📡 Communication & Control

• Communication Ports:

  • RS-485

  • CAN

• BMS Features:

  • Over-charge protection

  • Over-discharge protection

  • Over-current protection

  • Short-circuit protection

  • Cell balancing

  • Temperature protection

🌡️ Operating Environment

• Charge Temperature: 0°C to 55°C

• Discharge Temperature: –20°C to 65°C

• Storage Temperature: –10°C to 45°C

• Protection Rating: IP21 (Indoor use)

📏 Physical Specifications

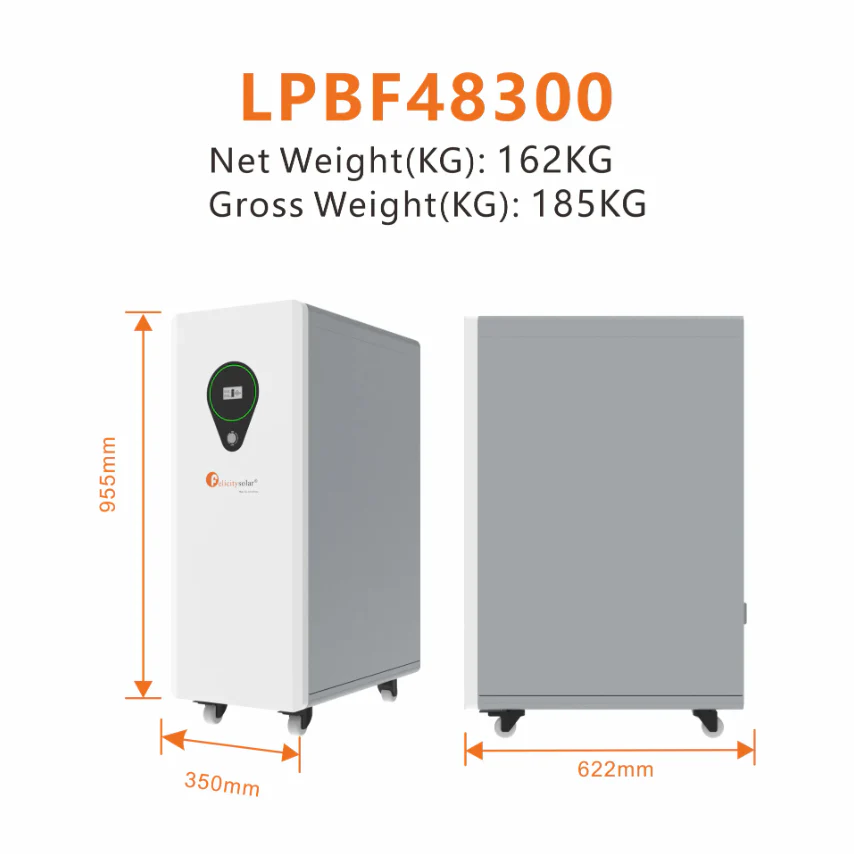

• Dimensions (L × W × H): 615 × 350 × 955 mm

• Net Weight: ~159 kg

• Gross Weight: ~183 kg

📄 Certifications & Warranty

• Certification: UN38.3

• Warranty: 5 years
