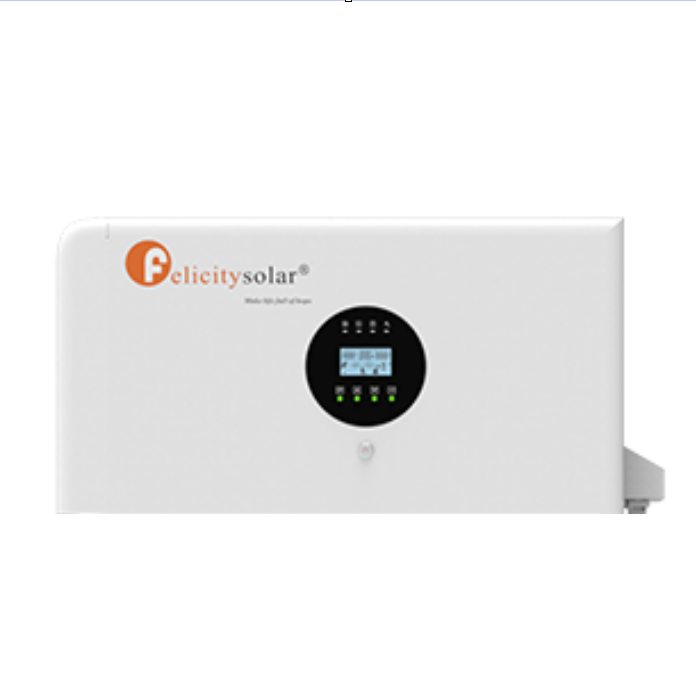

Felicity AI100-5048 – Inverter Specifications

Inverter (AI100-5048)

• Rated Output Power: 5,000 VA / 5,000 W

• DC Battery Voltage: 48 VDC

• Output Voltage: 230 VAC ±5%

• Output Frequency: 50/60 Hz (selectable)

• AC Input Voltage Range: 90–280 VAC

• Peak Inverter Efficiency: 93%

• Transfer Time (Single Unit): ~10 ms

• Transfer Time (Parallel): ~50 ms

• Parallel Capacity: Up to 12 units (max 60 kW)

• Protection: Overload, Over-temperature, Short-circuit

• Cooling: Air cooling

• Operating Temperature: –10°C to 50°C

• Humidity: 5% – 95%

• IP Rating: IP20

• Weight: ~17.8 kg

• Dimensions: 710 × 350 × 180 mm

• PV Input (MPPT):

  • MPPT Voltage Range: 90 – 450 VDC

  • Max PV Input Current: 20 A

• Max Battery Charge Current: 100 A (programmable)
