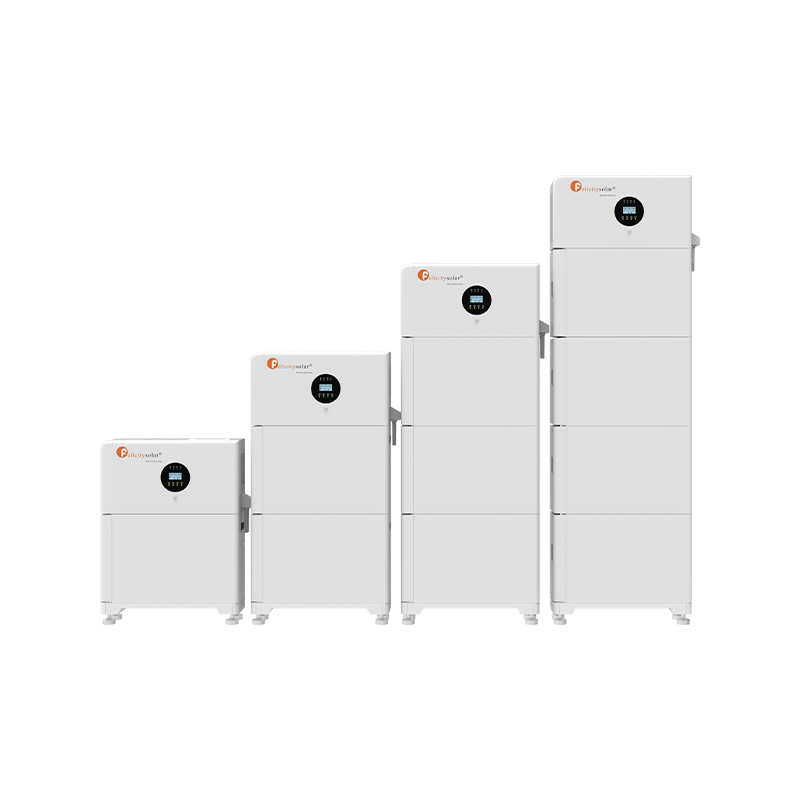

Felicity AI100-5048 – Inverter Specifications

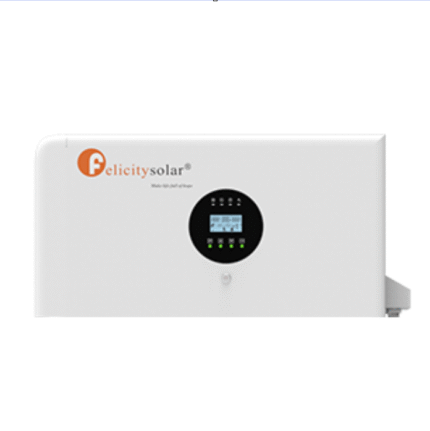

Inverter (AI100-5048)

• Rated Output Power: 5,000 VA / 5,000 W

• DC Battery Voltage: 48 VDC

• Output Voltage: 230 VAC ±5%

• Output Frequency: 50/60 Hz (selectable)

• AC Input Voltage Range: 90–280 VAC

• Peak Inverter Efficiency: 93%

• Transfer Time (Single Unit): ~10 ms

• Transfer Time (Parallel): ~50 ms

• Parallel Capacity: Up to 12 units (max 60 kW)

• Protection: Overload, Over-temperature, Short-circuit

• Cooling: Air cooling

• Operating Temperature: –10°C to 50°C

• Humidity: 5% – 95%

• IP Rating: IP20

• Weight: ~17.8 kg

• Dimensions: 710 × 350 × 180 mm

• PV Input (MPPT):

  • MPPT Voltage Range: 90 – 450 VDC

  • Max PV Input Current: 20 A

• Max Battery Charge Current: 100 A (programmable)

• Communication: RS232, CAN, RS485 (BMS)

Felicity AI100-5048 – Battery Specifications

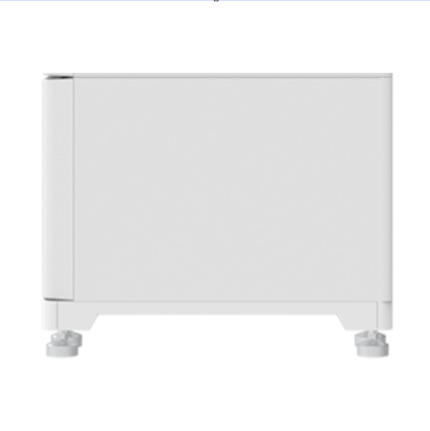

Battery Module (AI100-B5)

• Battery Type: LiFePO₄ (Lithium Iron Phosphate)

• Usable Capacity: 5.12 kWh

• Nominal Voltage: 51.2 V

• Operating Voltage Range: 44.8 – 57.6 V

• Continuous Charge/Discharge Current: ≤100 A

• Peak Current (15s): 150 A

• Depth of Discharge (DoD): ≥95%

• Cycle Life: ≥6,000 cycles

• Parallel Support: Up to 15 units (max 76.8 kWh)

• Communication: CAN / RS485

• Protection: Smart BMS, breaker, fuse

• Charging Temperature: 0°C – 55°C

• Discharge Temperature: –20°C – 55°C

• IP Rating: IP21

• Weight: ~45 kg

• Dimensions: 660 × 420 × 180 mm
